Catalogs
| File Name | Language | Size | Date | |
 | WellDrive WD770 | Turkish | 11 MB | 01.01.2024 |
| WellDrive WD770 | English | 11 MB | 01.01.2024 |
| WellDrive WD770 | Russian | 11 MB | 01.01.2024 |
Brochures
| File Name | Language | Size | Date | |
| WellDrive WD770 | Turkish | 1 MB | 01.01.2024 |
| WellDrive WD770 | English | 1 MB | 01.01.2024 |
| WellDrive WD770 | Russian | 1 MB | 01.01.2024 |
User Manuals
| File Name | Language | Size | Date | |
| WellDrive WD770 | Turkish | 22 MB | 01.01.2024 |
| WellDrive WD770 | English | 17 MB | 01.01.2024 |
PC Software
| File Name | Language | Size | Date | |
| WellSoft Setup 2.4.2.6 | English | 56 MB | 01.01.2024 |
Application Notes
| File Name | Language | Size | Date | |
| Kaskad Kontrol – 4 Pompa | English | 90 KB | 01.01.2024 |
| Kompresör uygulaması | Turkish | 90 KB | 01.01.2024 |
| PID Kontrol | Russian | 44 KB | 01.01.2024 |
Videos
| File Name | Language | Size | Date | |
 | Parametre girişi | English | 90 KB | 01.01.2024 |
Other
| File Name | Language | Size | Date | |
| ProfiBus GSD | English | 12 KB | 01.01.2024 |
| ProfiNet GSD | English | 16 KB | 01.01.2024 |
CAD Files

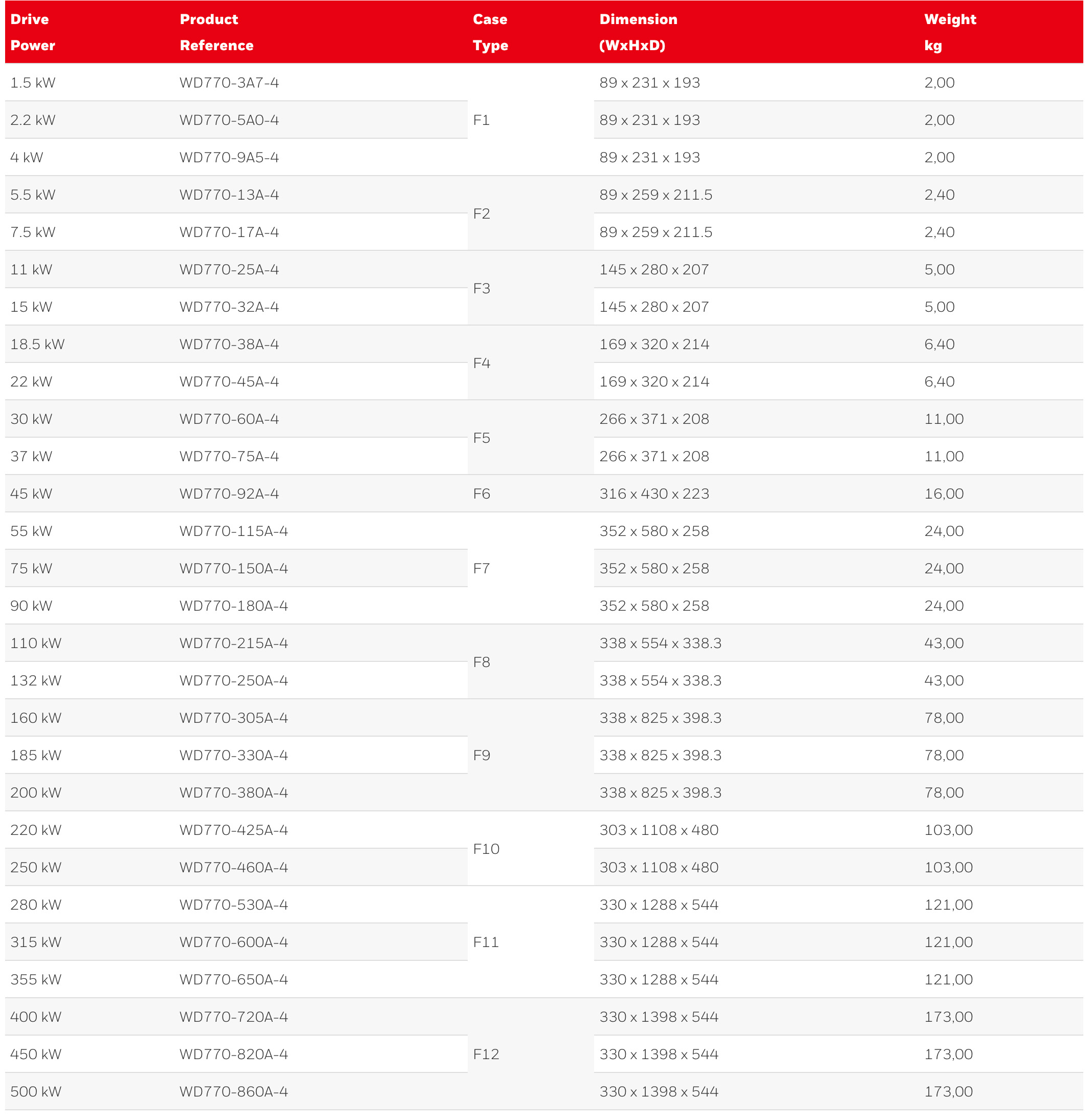

| Drive Power | Product Reference | Case Type | Dimension (WxHxD) | Weight kg |
| 1.5 kW | WD770-3A7-4 | F1 | 89 x 231 x 193 | 2,00 |
| 2.2 kW | WD770-5A0-4 | 89 x 231 x 193 | 2,00 | |
| 4 kW | WD770-9A5-4 | 89 x 231 x 193 | 2,00 | |
| 5.5 kW | WD770-13A-4 | F2 | 89 x 259 x 211.5 | 2,40 |
| 7.5 kW | WD770-17A-4 | 89 x 259 x 211.5 | 2,40 | |
| 11 kW | WD770-25A-4 | F3 | 145 x 280 x 207 | 5,00 |
| 15 kW | WD770-32A-4 | 145 x 280 x 207 | 5,00 | |
| 18.5 kW | WD770-38A-4 | F4 | 169 x 320 x 214 | 6,40 |
| 22 kW | WD770-45A-4 | 169 x 320 x 214 | 6,40 | |
| 30 kW | WD770-60A-4 | F5 | 266 x 371 x 208 | 11,00 |
| 37 kW | WD770-75A-4 | 266 x 371 x 208 | 11,00 | |
| 45 kW | WD770-92A-4 | F6 | 316 x 430 x 223 | 16,00 |
| 55 kW | WD770-115A-4 | F7 | 352 x 580 x 258 | 24,00 |
| 75 kW | WD770-150A-4 | 352 x 580 x 258 | 24,00 | |
| 90 kW | WD770-180A-4 | 352 x 580 x 258 | 24,00 | |
| 110 kW | WD770-215A-4 | F8 | 338 x 554 x 338.3 | 43,00 |
| 132 kW | WD770-250A-4 | 338 x 554 x 338.3 | 43,00 | |
| 160 kW | WD770-305A-4 | F9 | 338 x 825 x 398.3 | 78,00 |
| 185 kW | WD770-330A-4 | 338 x 825 x 398.3 | 78,00 | |
| 200 kW | WD770-380A-4 | 338 x 825 x 398.3 | 78,00 | |
| 220 kW | WD770-425A-4 | F10 | 303 x 1108 x 480 | 103,00 |
| 250 kW | WD770-460A-4 | 303 x 1108 x 480 | 103,00 | |
| 280 kW | WD770-530A-4 | F11 | 330 x 1288 x 544 | 121,00 |
| 315 kW | WD770-600A-4 | 330 x 1288 x 544 | 121,00 | |
| 355 kW | WD770-650A-4 | 330 x 1288 x 544 | 121,00 | |
| 400 kW | WD770-720A-4 | F12 | 330 x 1398 x 544 | 173,00 |
| 450 kW | WD770-820A-4 | 330 x 1398 x 544 | 173,00 | |
| 500 kW | WD770-860A-4 | 330 x 1398 x 544 | 173,00 |
2D Drawing Files
| File Name | Language | Size | Date | |
| Frame F1 – DWG | English | 90 KB | 01.01.2024 |
| Frame F1 – DXF | English | 90 KB | 01.01.2024 |
| Frame F1 – PDF | English | 90 KB | 01.01.2024 |
| Frame F2 – DWG | English | 90 KB | 01.01.2024 |
| Frame F2 – DXF | English | 90 KB | 01.01.2024 |
| Frame F2 – PDF | English | 90 KB | 01.01.2024 |
| Frame F3 – DWG | English | 90 KB | 01.01.2024 |
| Frame F3 – DXF | English | 90 KB | 01.01.2024 |
| Frame F3 – PDF | English | 90 KB | 01.01.2024 |
| Frame F4 – DWG | English | 90 KB | 01.01.2024 |
| Frame F4 – DXF | English | 90 KB | 01.01.2024 |
| Frame F4 – PDF | English | 90 KB | 01.01.2024 |
| Frame F5 – DWG | English | 90 KB | 01.01.2024 |
| Frame F5 – DXF | English | 90 KB | 01.01.2024 |
| Frame F5 – PDF | English | 90 KB | 01.01.2024 |
| Frame F6 – DWG | English | 90 KB | 01.01.2024 |
| Frame F6 – DXF | English | 90 KB | 01.01.2024 |
| Frame F6 – PDF | English | 90 KB | 01.01.2024 |
| Frame F7 – DWG | English | 90 KB | 01.01.2024 |
| Frame F7 – DXF | English | 90 KB | 01.01.2024 |
| Frame F7 – PDF | English | 90 KB | 01.01.2024 |
| Frame F8 – DWG | English | 90 KB | 01.01.2024 |
| Frame F8 – DXF | English | 90 KB | 01.01.2024 |
| Frame F8 – PDF | English | 90 KB | 01.01.2024 |
| Frame F9 – DWG | English | 90 KB | 01.01.2024 |
| Frame F9 – DXF | English | 90 KB | 01.01.2024 |
| Frame F9 – PDF | English | 90 KB | 01.01.2024 |
| Frame F10 – DWG | English | 90 KB | 01.01.2024 |
| Frame F10 – DXF | English | 90 KB | 01.01.2024 |
| Frame F10 – PDF | English | 90 KB | 01.01.2024 |
| Frame F10 DUT – DWG | English | 90 KB | 01.01.2024 |
| Frame F10 DUT – DXF | English | 90 KB | 01.01.2024 |
| Frame F10 DUT | English | 90 KB | 01.01.2024 |
| Frame F11 – DWG | English | 90 KB | 01.01.2024 |
| Frame F11 – DXF | English | 90 KB | 01.01.2024 |
| Frame F11 – PDF | English | 90 KB | 01.01.2024 |
| Frame F11 DUT – DWG | English | 90 KB | 01.01.2024 |
| Frame F11 DUT – DXF | English | 90 KB | 01.01.2024 |
| Frame F11 DUT | English | 90 KB | 01.01.2024 |
| Frame F12 – DWG | English | 90 KB | 01.01.2024 |
| Frame F12 – DXF | English | 90 KB | 01.01.2024 |
| Frame F12 – PDF | English | 90 KB | 01.01.2024 |
| Frame F12 DUT – DWG | English | 90 KB | 01.01.2024 |
| Frame F12 DUT – DXF | English | 90 KB | 01.01.2024 |
| Frame F12 DUT | English | 90 KB | 01.01.2024 |
3D Drawing Files
| File Name | Language | Size | Date | |
| Frame F1 – STEP | English | 26 MB | 01.01.2024 |
| Frame F2 – STEP | English | 26 MB | 01.01.2024 |
| Frame F3 – STEP | English | 26 MB | 01.01.2024 |
| Frame F4 – STEP | English | 26 MB | 01.01.2024 |
| Frame F5 – STEP | English | 26 MB | 01.01.2024 |
| Frame F6 – STEP | English | 26 MB | 01.01.2024 |
| Frame F7 – STEP | English | 26 MB | 01.01.2024 |
| Frame F8 – STEP | English | 26 MB | 01.01.2024 |
| Frame F9 – STEP | English | 26 MB | 01.01.2024 |
| Frame F10 – STEP | English | 26 MB | 01.01.2024 |
| Frame F10 DUT – STEP | English | 26 MB | 01.01.2024 |
| Frame F11 – STEP | English | 26 MB | 01.01.2024 |
| Frame F11 DUT – STEP | English | 26 MB | 01.01.2024 |
| Frame F12 – STEP | English | 26 MB | 01.01.2024 |
| Frame F12 DUT – STEP | English | 26 MB | 01.01.2024 |
